Fuses Explained - Why They Matter & Common Mistakes to Avoid

Fuses are small components with a large job: they stop abnormal current from turning into overheated cables, damaged equipment, or a fire. In UK electrical systems, that can mean a plug-top fuse, a protective device in a consumer unit, or a fused spur inside an industrial control panel. I treat a fuse as a deliberate weak point, because the system is safer when that point fails first and the fault stays local. This article explains what that means in practice, how ratings are chosen, how fuses differ from breakers and RCDs, and the mistakes that make protection less effective.

What a fuse actually does when current goes wrong

I look at a fuse as a controlled failure point. Inside it is a thin element that heats up as current rises; when that current stays too high, the element melts and the circuit opens. That sounds basic, but it is exactly what makes the device valuable: the fault is cut off before the wiring, terminals, or connected equipment have time to cook themselves.

The important distinction is between normal load current and fault current. Normal current is what the appliance or machine is meant to draw. Fault current is the unwanted surge caused by a short circuit, crushed cable, moisture ingress, insulation breakdown, or a failed component. A correctly chosen fuse can tell the difference well enough to react to the second without nuisance-tripping on the first.

Normal load and fault current are not the same thing

In a healthy circuit, current should stay within the range the cable and equipment were designed for. When a fault appears, the current can rise very quickly, and the energy released is what creates heat, smoke, melted insulation, and in the worst cases, fire. A fuse is there to limit that energy before the damage spreads.

Why opening the circuit matters

Once the fuse element has melted, the circuit gap has to stop the current from continuing as an electrical arc. Good fuse design helps that gap extinguish the arc cleanly. In practice, that means one failed branch stays a local problem instead of pulling the whole installation into the same failure. Once you see that, the rating question becomes much easier to understand.

How UK fuse ratings are chosen in practice

For plug-in appliances, Electrical Safety First notes that common UK plugs are generally fitted with 3A or 13A fuses, and that a 3A fuse is suitable for appliances up to about 700 watts. That is a useful rule of thumb, but I would still treat the appliance label, the cable size, and the expected load as the real deciding factors. A fuse should protect the flex and the connected equipment, not simply be “big enough to stop blowing.”

Fuse rating	Typical use	Why it fits
3A	Low-power appliances, lamps, chargers, small electronics	Matches lighter loads and helps protect small flexible cords from overheating
13A	Kettles, heaters, irons, vacuum cleaners, and many larger plug-in appliances	Allows higher normal current while still clearing dangerous faults

The mistake I see most often is simple up-rating. If a 3A fuse blows, replacing it with a 13A fuse does not cure the fault; it only removes protection from the cable or appliance. In fixed wiring, the same logic applies to the wider installation: the fuse or breaker has to suit the circuit, the cable route, and the way the load behaves.

That is why repeated fuse failure should be treated as a symptom, not a nuisance. Once the rating is right, the next question is whether the fuse type itself matches the load profile.

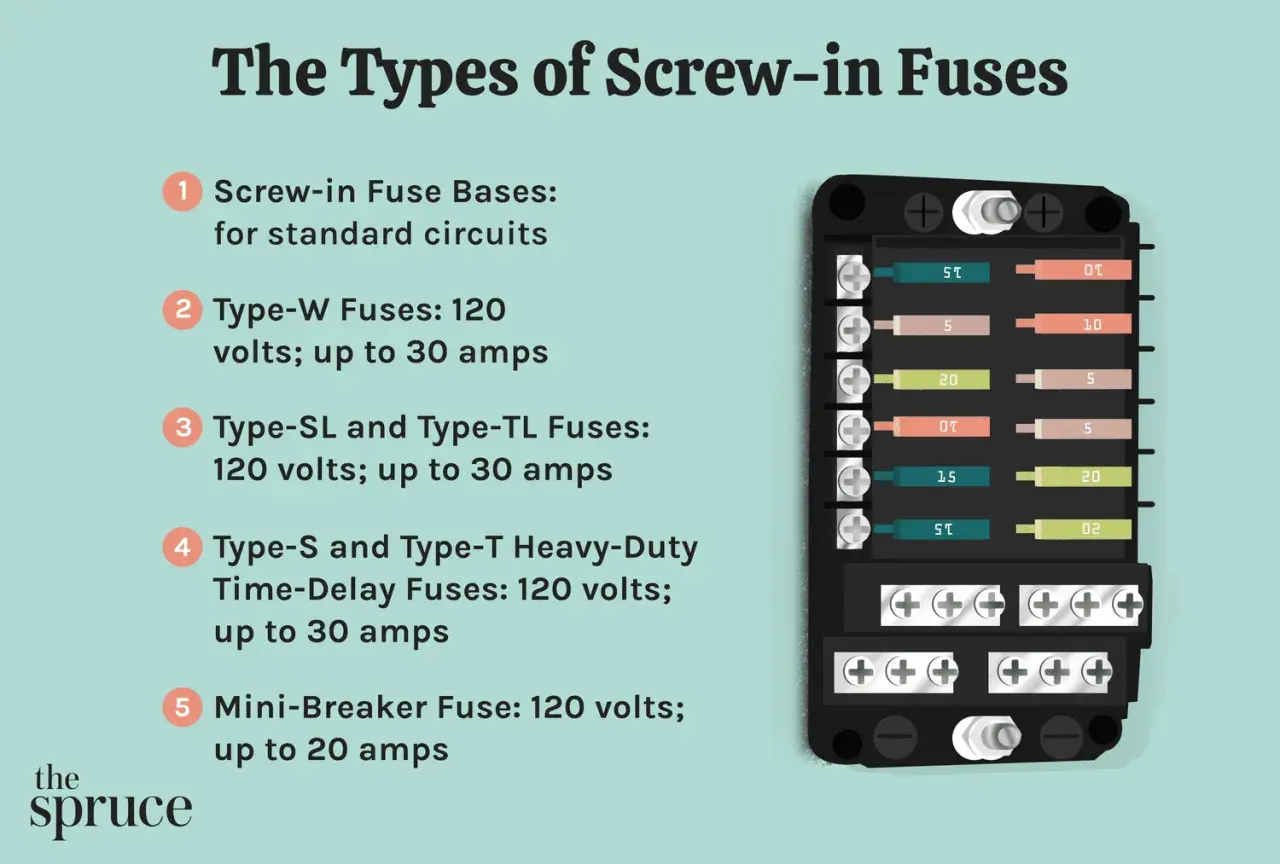

Fuse types matter more than many people think

Not every circuit behaves the same way. Some loads draw a stable current from the start. Others pull a large inrush current for a fraction of a second when they switch on. If you use the wrong fuse characteristic, the system can feel unreliable even when the equipment is healthy.

Fuse type	Best for	Main trade-off
Fast-acting	Sensitive electronics, PLC power supplies, control circuits	Clears faults quickly, but may nuisance-blow on harmless start-up surges
Time-delay	Motors, transformers, inrush-heavy loads	Tolerates brief start-up peaks, but still protects against real faults
Plug-top or cartridge form	Depends on the installation and equipment design	The package changes, but the current-time behaviour is still what matters

In industrial automation, this difference matters a lot. A motor starter, a drive, or a 24V DC power supply can behave perfectly well and still create enough inrush to upset a fuse that was chosen only by current rating. I would rather match the fuse to the behaviour of the load than deal with repeated interruptions and the false assumption that the machine is “faulty.”

That leads straight into the comparison people often need most: fuse versus breaker versus RCD.

Fuses, circuit breakers and RCDs do different jobs

People sometimes lump all protection devices together, but they do not solve the same problem. A fuse protects against overcurrent by opening once the current becomes unsafe. A circuit breaker does a similar job, but it is resettable. An RCD is about a different kind of risk: leakage to earth and the chance of electric shock.

Device	What it reacts to	What it protects best	Resettable
Fuse	Overcurrent and short circuits	Cables, equipment, and fault-energy limitation	No
Circuit breaker	Overcurrent and short circuits	Branch circuits and reusable protection	Yes
RCD	Earth leakage and current imbalance	People, shock reduction, and some fire-risk reduction	Yes

HSE guidance notes that a personal-protection RCD should trip at no more than 30 mA, which is a useful reminder that RCDs are about a different hazard than fuse protection. Electrical Safety First makes the same practical point in another way: ordinary fuses and breakers do not give you the same level of personal shock protection that an RCD can provide. I think that distinction is worth keeping clear, because it stops people from using the wrong device as a substitute for the right one.

So if a fuse is not a breaker and not an RCD, where do the real mistakes happen? Usually in maintenance, swapping, and troubleshooting.

The mistakes that quietly defeat fuse protection

I see the same handful of errors over and over, and most of them start with good intentions. Someone wants to keep equipment running, so they replace a fuse quickly without asking what caused it to fail. That is exactly how small electrical problems become expensive ones.

• Upsizing the fuse to stop nuisance blowing. This removes protection instead of fixing the cause.
• Replacing the fuse before checking the fault. If the short, overload, or damaged cord is still present, the new fuse will usually fail too.
• Using the wrong fuse characteristic. A slow-start motor and a delicate control circuit should not be treated the same way.
• Ignoring heat marks or loose holders. Discolouration, soft plastic, or a burnt smell usually means the problem has been building for a while.
• Using poor-quality or counterfeit parts. A fuse should fail predictably, not unpredictably.

The practical habit I recommend is simple: treat a blown fuse as evidence. It is telling you that something in the circuit has drifted outside its safe operating range. Once you investigate that properly, the same logic becomes even more valuable in automation systems, where downtime carries its own cost.

Why this still matters in automation and smart manufacturing

In smart manufacturing, I still rely on fuses because modern systems are more fragile than they look. A PLC, HMI, industrial network switch, sensor rail, or drive module can fail in ways that are expensive to diagnose if the protection is too blunt. A well-chosen fuse lets me isolate the problem branch instead of taking a whole cabinet, production line, or process cell offline.

Automation example	What the fuse protects	Why it helps
24V DC control rail	Sensors, relays, I/O modules	Limits a fault to one branch instead of collapsing the whole control supply
Motor starter or drive feed	Cabling and power electronics	Helps contain fault energy before it reaches expensive semiconductor hardware
Local machine branch circuit	Wiring and connected field devices	Makes troubleshooting faster because the failed area stays narrow

This is where I think the “old-fashioned” label misses the point. A fuse is not obsolete just because the machine is digital. If anything, digital systems make selective protection more useful, because a small fault in one rail can cause a much larger operational failure if it is allowed to spread. In practice, that means the right fuse can save more than hardware; it can save time, diagnostics effort, and production continuity.

That brings me to the last thing I check, because repeated failures are usually the clearest clue of all.

What I check when a fuse keeps blowing

A fuse that keeps failing is not something I try to “work around.” It is a fault indicator. My first questions are always the same: has the load changed, is there a short or overload, is the cable damaged, and is the fuse type actually suited to the circuit?

1. Check the load and whether someone added new equipment.
2. Inspect the cable, plug, terminals, and enclosure for heat, wear, or moisture.
3. Look for mechanical damage, crushed flex, loose terminations, or signs of arcing.
4. Confirm that the fuse rating and characteristic match the application.
5. Isolate the supply and test before fitting another fuse.

For anything beyond a plug-top fuse, I would treat repeated failure as a proper diagnostic job, not a replacement job. That approach keeps the fault local, protects the installation, and usually tells you more about the system than the blown fuse itself ever will. In the real world, that is why fuses still matter so much in electrical systems.
