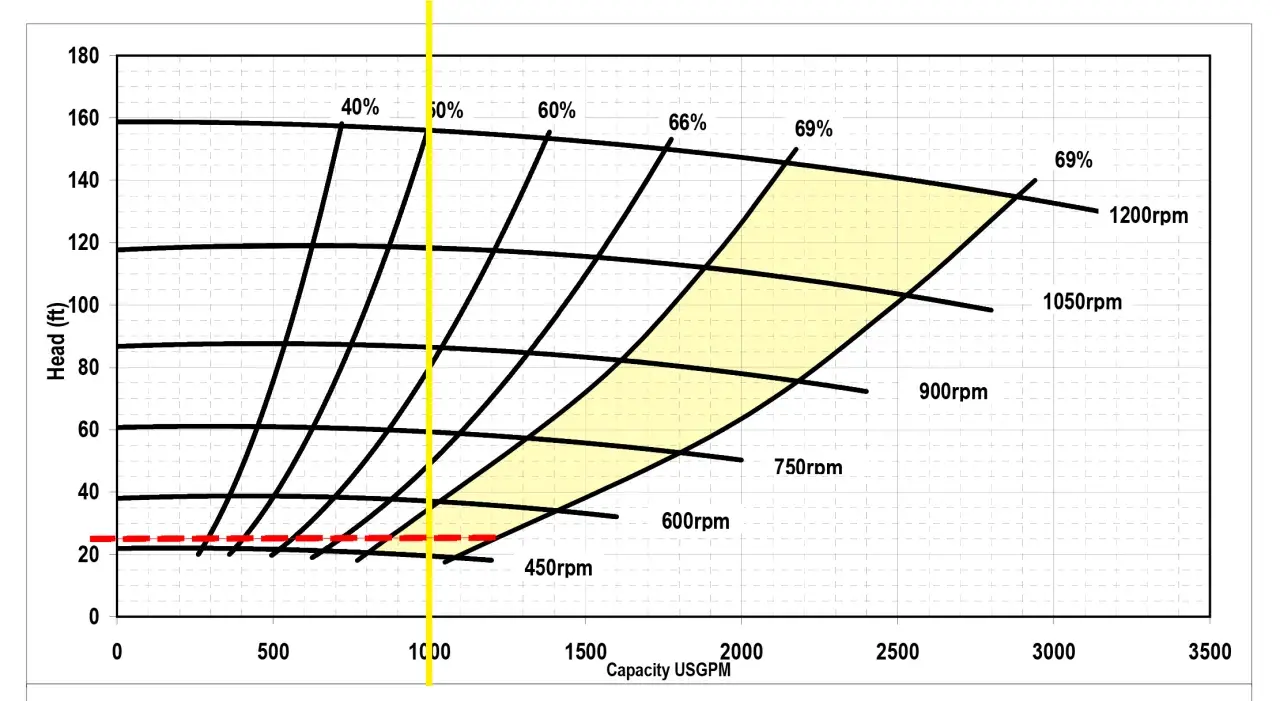

Pump performance curves showing head vs. capacity at various RPMs. The yellow shaded area indicates efficient operation, illustrating what causes suction by showing how flow rate and head are related.

Table of contents

To answer what causes suction in a vacuum-driven system, I start with a simple rule: lower the pressure in one place and the surrounding fluid pushes in. That is not a mysterious pulling force; it is pressure imbalance, plus a seal that keeps the low-pressure zone alive. In electrical systems, that makes the motor, valve, sensor, and hose layout just as important as the pump itself.

The physics that matters most is pressure, sealing, and flow

  • Suction is created by pressure difference, not by a separate pulling force.
  • At sea level, atmospheric pressure is about 101.3 kPa (14.7 psi), which sets the theoretical ceiling for suction force.
  • In electrical systems, suction usually comes from a motor-driven vacuum pump or an electrically controlled Venturi ejector.
  • Leaks, hose restrictions, and poor sealing often matter more than the headline pump rating.
  • For industrial automation, the best reading is the one taken at the point of use, not only at the pump.

What suction really is in physics

I find the biggest misconception is that suction somehow pulls on an object. It does not. What we call suction is what happens when pressure on one side of a surface drops below the pressure on the other side, so the higher-pressure side pushes the material or part into the low-pressure zone.

That is why a suction cup sticks. The cup removes or displaces some air, the pressure inside falls, and the atmosphere outside does the work. At sea level, ambient pressure is about 101.3 kPa, so a perfect vacuum could create at most that much pressure difference. In the UK, where many industrial sites sit close to sea level, the baseline is usually similar enough that the same rule applies without much adjustment.

The force depends on area as much as pressure. A small cup can feel surprisingly strong on a smooth panel because the same pressure difference acts over the whole surface. On a rough, porous, or curved object, that force drops quickly because the seal fails and air leaks back in.

I usually reduce the whole concept to this: suction is controlled pressure difference. Once you see it that way, the rest of the hardware makes much more sense. From there, the next question is how electrical systems actually create and manage that low-pressure zone.

Why electrical systems create suction so reliably

Electrical systems are good at suction because they can drive a process continuously and regulate it precisely. A motor can spin a pump at a stable speed, a solenoid can open or close a vacuum line, and a pressure sensor can tell the controller whether the grip is healthy or slipping.

In a motor-driven vacuum pump, the electrical energy powers moving parts that remove air or gas from a chamber. As the internal volume changes, the pressure falls, and the surrounding atmosphere pushes fluid toward the lower-pressure region. In a Venturi ejector, electricity often does not create the suction directly; instead, it controls a valve that admits compressed air, and the fast air jet creates the low-pressure zone.

That distinction matters in automation. A pump is usually the better fit when I want continuous vacuum, predictable control, and lower compressed-air consumption. A Venturi unit makes more sense when I want a compact toolhead, very fast response, or a simpler end-of-arm setup, even if the air bill is higher.

Modern control systems also make suction far more dependable than it used to be. A vacuum switch can trigger a pick only after the target pressure is reached, and a pressure transducer can feed live data into a PLC or IoT platform. That closed loop is what turns raw vacuum hardware into a stable industrial system.

The main mechanisms behind suction in automation equipment

When I look at factory automation, I usually see four practical ways suction is generated. They all rely on the same physics, but the hardware behaves differently enough that the wrong choice can waste energy or cause unreliable picking.

Mechanism How it creates suction Best fit Main trade-off
Electric vacuum pump A motor drives vanes, claws, a diaphragm, or another pumping element to remove gas from a chamber. Continuous holding, cleaner control, lower compressed-air use More moving parts and usually a larger footprint
Venturi ejector Compressed air accelerates through a narrow nozzle, lowering static pressure at the vacuum port. Fast pick-and-place, light end effectors, point-of-use vacuum Air-hungry and often noisier
Fan or blower Moves a large volume of air, creating only a modest pressure drop. Light debris handling, ventilation, dust and trim removal Weak holding force compared with a true vacuum source
Suction cup or sealed chamber Forms a partial seal so outside pressure can act across the full area. Flat, smooth, non-porous workpieces Performance collapses if the seal leaks

I keep one rule in mind here: vacuum level and airflow are not the same thing. A deep vacuum is useful, but only if the system can also move enough air to compensate for leakage and release timing. That is why a supposedly powerful system can still struggle in the real world.

In industrial practice, some multi-stage generators can get close to about -93 kPa at the point of use, but that number becomes meaningless if the surface leaks, the hose is undersized, or the part is porous. The hardware spec is only the starting point. The line between a strong grip and a weak one is usually in the details.

What actually limits suction strength

The biggest mistake I see is assuming the pump rating tells the whole story. It does not. Real suction strength depends on the full path from the source to the part, and every weak link steals performance.

Limiting factor Why it matters What I check first
Seal quality A bad seal lets air back in, which destroys the pressure difference. Cup wear, contamination, alignment, surface contact
Surface roughness and porosity Air leaks through gaps or the material itself, especially on MDF, cast parts, or textured plastics. Part finish, cup type, foam lips, flow reserve
Hose diameter and length Long, narrow lines reduce conductance, so the pump cannot deliver its rated performance at the tool. Fittings, bends, internal diameter, line length
Filters and silencers Clogging adds resistance and slows evacuation. Dust loading, maintenance interval, replacement history
Ambient pressure Lower atmospheric pressure means less maximum available suction force. Site altitude and weather-related variation
Temperature and contamination Heat, oil, moisture, and debris affect seals and pumping efficiency. Condition of cups, lines, separators, and pump internals

Conductance is a useful term here. It simply means how easily gas moves through a hose, fitting, or valve. A pump can be excellent and still underperform if the conductance of the line is poor, because the restriction keeps the low-pressure zone from reaching the workpiece fast enough.

There is also a hard physical ceiling. At sea level, the atmosphere can only push so hard, which is why the theoretical water-lift limit is about 10.3 metres. Real systems get less than that because losses, leakage, and fluid behaviour all eat into the ideal case.

Once I see those limits clearly, troubleshooting becomes less guesswork and more a sequence of checks. That is where the electrical side of the system becomes especially important.

How I troubleshoot weak suction in an electrical system

When suction drops off, I separate the problem into source, line, and end effector. That stops me from blaming the pump too early, which is one of the most common and expensive mistakes on a production floor.

  1. Measure vacuum at the source and at the point of use. If the source is fine but the tool is weak, the problem is downstream.
  2. Check supply voltage and current draw on the motor or valve. Undervoltage, a failing capacitor, or a tired drive can reduce pump speed and vacuum output.
  3. Inspect filters, silencers, and separators. A partially blocked filter is enough to starve a system.
  4. Listen for leaks around fittings, hoses, valve blocks, and cup lips. A faint hiss is often the answer.
  5. Verify solenoids, blow-off valves, and vacuum switches. In electrically controlled systems, a valve that is not fully shifting can mimic a bad pump.
  6. Test the part surface. If grip fails only on certain materials, the hardware may be fine and the surface is the real limitation.

I also like to log vacuum and motor current together in monitored systems. In a smart manufacturing cell, that small habit makes gradual drift obvious long before a robot drops a part. It is far easier to catch a filter loading trend or seal degradation from data than from a production fault.

If the system uses a pressure transducer, I trust the reading at the gripper more than the reading at the pump. The distance between those two points often explains the whole failure mode. A line that looks acceptable on paper can still lose enough pressure to break the pick.

How I choose the right vacuum source for automation work

If I were specifying a cell from scratch, I would start with the part, the surface, and the duty cycle, not the pump. That order matters because suction is a system-level behaviour, and the wrong source can create noise, cost, or maintenance problems even when it technically works.

I usually use this decision logic:

  • Choose a motor-driven vacuum pump when the system needs continuous duty, stable vacuum, and lower compressed-air usage.
  • Choose a Venturi ejector when the end effector must stay light, response time matters, and the application tolerates higher air consumption.
  • Choose a fan or blower when the job is more about moving large volumes of air or debris than generating a strong hold.
  • Choose close-loop vacuum monitoring when the workpiece varies, because sensor feedback can compensate for real-world drift.

For industrial automation and IoT-heavy equipment, I favour systems that expose live vacuum data rather than hiding it inside the cabinet. Once the pressure signal is available to the controller, the machine can adjust release timing, flag leaks, or stop before a fragile part is lost. That is the kind of control that turns a basic vacuum setup into a dependable process tool.

The practical trade-off is simple: deeper vacuum is not always better, and higher flow is not always enough. The best solution is the one that matches the part geometry, leakage risk, cycle time, and energy budget.

The detail that separates a strong vacuum from a disappointing one

If I had to leave one practical rule behind, it would be this: suction is a chain, not a single component. The source creates the pressure difference, the line delivers it, the valve controls it, and the cup or chamber turns it into holding force. Break any link and the system weakens.

That is why I never treat a suction issue as only a pump issue. In real equipment, the cause is often a small leak, a restrictive line, a dirty filter, or a surface that does not seal properly. The physics is straightforward, but the implementation is unforgiving.

For anyone designing or maintaining electrical vacuum systems, the best habit is to measure suction where the part actually lives, watch the trend over time, and size the hardware for the real leak load, not the optimistic brochure figure. If you do that, the system is usually more stable, more efficient, and far easier to diagnose when something changes.

Frequently asked questions

Suction isn't a pulling force; it's created by a pressure difference. Electrical systems use motors to drive vacuum pumps or control Venturi ejectors, removing air and lowering pressure, allowing atmospheric pressure to push objects into the low-pressure zone.

Electric pumps use motors for continuous, stable vacuum and lower air consumption, ideal for sustained holding. Venturi ejectors use compressed air to create suction for fast, light applications, often at the cost of higher air usage.

Common culprits include poor seals, surface roughness, restrictive hoses, clogged filters, or even ambient pressure changes. The pump rating alone doesn't guarantee performance; the entire system's integrity is crucial.

Start by measuring vacuum at both the source and the point of use. Check for leaks, inspect filters, verify solenoid function, and test the part surface. Monitoring vacuum data can also help identify gradual performance drops.

Not necessarily. While a deep vacuum is important, sufficient airflow to compensate for leaks and ensure quick release is also vital. The best solution balances vacuum level, flow, and system efficiency for the specific application.
