ISO VG Oil - Choose Right for Electrical Systems & Avoid Errors

In electrical systems, lubricant choice is one of those details that stays invisible until it starts costing time and money. What many technicians loosely call iso oil is usually an ISO viscosity-grade industrial lubricant, and the grade tells you how the oil flows at 40°C, not whether it is automatically the right product for a motor, gearbox or transformer. I will keep this practical: where the grades fit, how I choose between 32, 46, 68 and 100, and when a different oil specification is the correct answer.

What ISO viscosity grades really tell you

The first thing I do is separate the grade number from the marketing language around it. ISO 3448 is a viscosity classification system for industrial liquid lubricants, including hydraulic fluids and electrical oils, so the number is about flow behaviour rather than brand, quality or performance tier. In simple terms, an ISO VG lubricant is defined by its kinematic viscosity at 40°C, and the grade is only useful if you understand the operating temperature, speed and load of the machine.

That matters because two oils can share the same ISO VG and still behave very differently in service. One may have better oxidation resistance, cleaner filtration behaviour or stronger foam control, while another may only meet the minimum expected of the grade. I treat the ISO grade as the first filter, not the final decision. Once you read it that way, the next step is obvious: find out where the oil actually works inside the electrical asset.

Where these oils fit inside electrical systems

SKF’s motor guidance is a useful example here: some oil-lubricated radial bearings are specified around ISO VG 32, while certain thrust roller bearings move up to ISO VG 68. That is a good reminder that the right grade depends on the bearing geometry, not just the motor nameplate. If the asset is a transformer or switchgear tank, though, I stop thinking in terms of ordinary lubricants and switch to a different specification altogether.

How I choose the right grade for motors, gearboxes and auxiliaries

My selection process is simple, but I do not skip steps. I start with operating temperature, then speed, then load, then the way the oil is delivered. If the equipment runs fast and cool, a lower-viscosity oil usually makes more sense because it reduces churning and start-up drag. If the bearing or gearbox sees heavier load, higher temperature or a thicker required film, I move up cautiously.

• Temperature matters first because hot oil thins out and cold oil thickens up. A grade that works in a warm machine room may become sluggish in a cold UK winter start-up.
• Speed pushes me toward lower viscosity. Faster shafts need less drag, otherwise the oil itself becomes part of the heat load.
• Load pushes me the other way. Heavy bearing loads, thrust loading and gear mesh pressure usually need more film thickness.

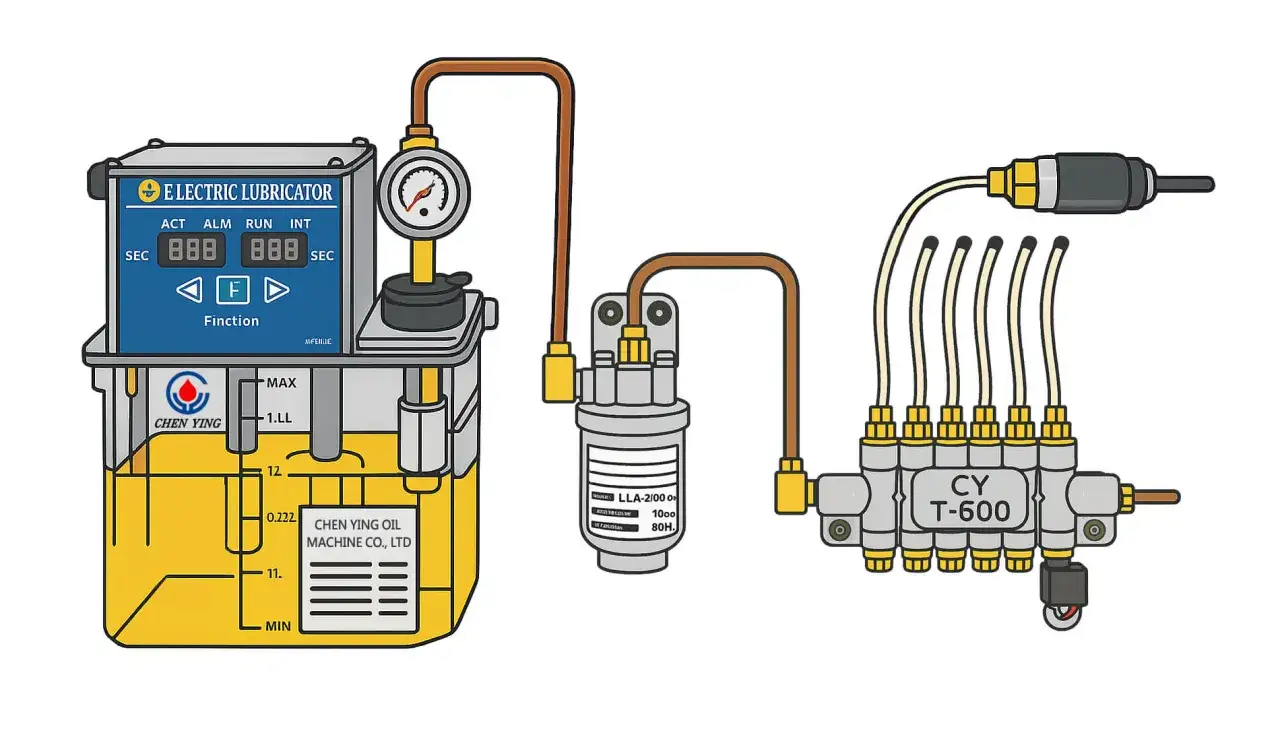

• Delivery method changes the answer. Oil bath, circulation, mist and oil-air systems all impose different flow and filtration demands.
• OEM limits stay non-negotiable. If the manual gives a viscosity window, I stay inside it unless I have a documented engineering reason not to.

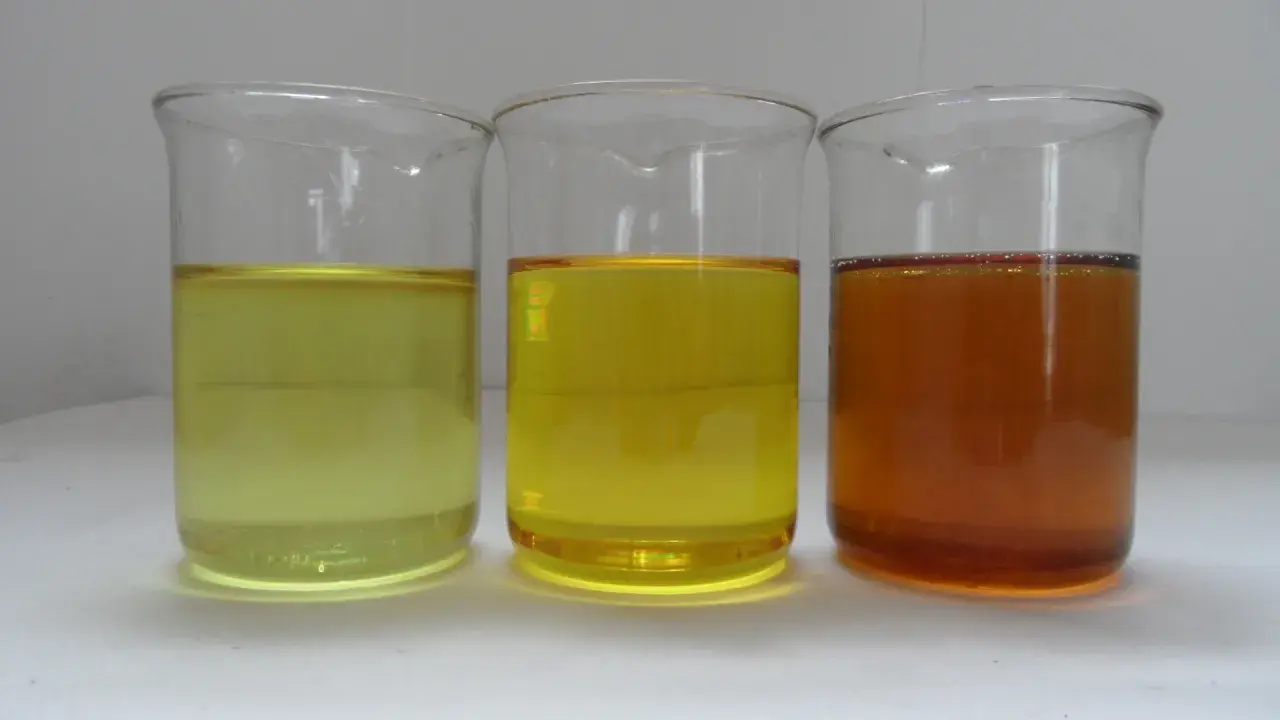

As a rule of thumb, I think of ISO VG 32 as the lighter, faster-running option, 46 as the balanced middle ground, 68 as the common choice for warmer or more heavily loaded equipment, and 100 as the point where slower, tougher drives start to dominate. That is a practical guide, not a universal rule, but it is good enough to prevent the most common over-thick or over-thin choices. There is one major exception to keep in mind before you buy anything: some electrical equipment does not want a lubricant at all, but an insulating fluid.

When an insulating oil is a different problem entirely

This is where I see the most expensive confusion. Bearings, gears and auxiliary drives need lubricants. Transformers, switchgear and some tap changers need electrical insulating liquids. Those two categories may both be called “oil” in casual conversation, but they are specified for different jobs. IEC 60296, for example, covers mineral insulating oils for transformers, switchgear and similar equipment where insulation and heat transfer are part of the duty.

That distinction matters because the properties you care about change. In a bearing lubricant, viscosity, film strength and oxidation stability are central. In an insulating fluid, dielectric strength, moisture behaviour, oxidation resistance and gassing performance become equally important. I would never approve a drum simply because the viscosity looked close enough. If the fluid is meant to insulate electrical equipment, it needs the correct electrotechnical specification, not just a sensible ISO VG number.

Once the fluid class is clear, the next reliability gate is contamination control.

Why cleanliness and compatibility matter more than most people think

A correctly chosen grade can still fail if it arrives dirty, gets contaminated in storage or does not mix well with what is already in the machine. Water, dust, metal fines and varnish fragments all shorten bearing life, and in electrical systems they can also push vibration and temperature in the wrong direction. In circulating oil systems, I treat filtration, sealed storage and clean transfer equipment as part of the lubricant specification, not as optional housekeeping.

Compatibility is just as important. Two oils can share the same ISO VG and still behave badly together if their base oils or additive packages are not meant to mix. That is why I check the existing fill, the seal materials and the top-up plan before I add anything to the reservoir. The practical checks I care about are straightforward:

• Water content and any sign of emulsion
• Particle contamination and filter loading
• Viscosity drift from the original fill
• Foaming or air release problems
• Additive and base-oil compatibility with the existing charge

When those basics are ignored, the symptom is usually not a neat failure mode. It is a hot bearing, a noisy fan or a gearbox that starts drawing more power than it should. Those are the kinds of mistakes I see most often in the field.

Common mistakes that shorten bearing life

The failure pattern is usually boring, which is exactly why it gets missed. The oil label looks right, the machine runs for a while, and then the temperature or noise starts drifting until the problem becomes obvious.

• Choosing by grade number alone rather than by operating speed, load and temperature.
• Moving up to a thicker oil for “safety” and accidentally increasing drag, heat and energy use.
• Mixing lubricant types casually, especially when the equipment family includes motors, hydraulics and electrical insulating fluids.
• Ignoring the OEM relubrication interval and relying on habit instead of condition.
• Using dirty storage and transfer practices that put contamination into the system before the oil even starts work.
• Assuming one oil suits every electrical asset, when the real answer depends on bearing design, gearbox duty and cooling method.

I try to correct those mistakes early because the damage is often cumulative. There is no dramatic moment when a slightly wrong lubricant suddenly becomes a catastrophic one; the machine just runs hotter, louder and less efficiently until the maintenance team has to intervene. That is exactly where smart maintenance helps.

How smart maintenance changes lubricant choice

In 2026, I expect the best lubrication decisions to show up in the data. Temperature, vibration, oil condition and motor load are all easier to track now, which means I can see whether the lubricant choice is helping or quietly creating extra loss. In a connected plant, the oil is no longer chosen once and forgotten; it becomes part of a feedback loop.

That is especially useful in smart manufacturing environments, where motors may run variable loads, conveyors may stop and start, and auxiliary systems may sit idle for long periods before coming back under load. A sensor package can tell me whether a grade is too heavy for cold starts, whether contamination is building faster than expected or whether a gearbox is running hotter after a maintenance event. The key point is simple: monitoring does not replace a good lubricant spec, but it exposes a bad one much earlier.

When the maintenance system is connected, I can also move away from rigid calendar-based relubrication and towards condition-based intervention. That gives me a better chance of keeping the oil in its working window instead of changing it too early or too late. Before I sign off on a drum, reservoir or top-up plan, I still run through one final check.

What I would check before approving the next fill

If I were reviewing an electrical asset today, I would ask these questions in order:

• Is this a bearing, gearbox or auxiliary lubrication job, or is it an insulating-fluid application?
• What viscosity window does the OEM give at the actual operating temperature?
• Will the machine see cold starts, high speed, heavy thrust load or long idle periods?
• Are the base oil and additives compatible with what is already in the system?
• How will I keep the oil clean during storage, transfer and service?
• What data will prove the choice worked: temperature, vibration, oil analysis or all three?

If the answer to any of those questions is vague, I slow down and get better data before I buy or fill anything. That is still the most reliable way I know to avoid hot bearings, wasted energy and unnecessary failures, and it is usually cheaper than chasing a higher viscosity number or a familiar label.
