Air Pump vs. Air Compressor - Which Do You Really Need?

What each machine is built to do

I usually separate the two by asking one question: do you need air to move, or do you need air to do work? An air pump is often used for inflation, circulation, or light vacuum tasks, where the goal is to move air in a controlled way without building a large pressure reserve. A compressor, by contrast, takes ambient air and raises its pressure so that the air can be stored, regulated, and used as a source of mechanical energy.

A blower sits between the two: it moves a lot of air at very low pressure, so it can confuse the picture if you only look at the word “air” and not at the pressure requirement. That distinction matters in fluid power. Pumps are the standard language of hydraulics, where liquids are moved under pressure; compressors belong to pneumatics, where air is intentionally squeezed to create usable force. If you are feeding a cylinder, valve island, or air tool, the compressor is the source. If you are topping up a tyre, inflating packaging, or running a low-pressure air circuit, a simpler pump is often all you need.

The practical rule is simple: a pump moves air, while a compressor creates compressed air for later use. Once you look at it that way, the next question is how that difference shows up in real operating behaviour.

How they behave when you put them to work

On paper, both devices handle air. In practice, they feel very different once you put a hose, tank, or downstream load on them. The table below is the most useful way I know to compare them without getting lost in product names.

The most common mistake is assuming that a bigger tank makes a pump into a compressor. It does not. A receiver tank only smooths short peaks and reduces cycling; it does not change the underlying pressure capability or the flow the machine can sustain. Once that clicks, the next step is looking at the wider fluid power system around the machine.

Why fluid power systems care about the distinction

In a fluid power setup, the compressor is only the first component. Regulators set pressure, filters remove particles, dryers cut moisture, and distribution lines deliver air to the point of use. If any one of those parts is undersized, the system still works on a good day and fails on a bad one: cylinders slow down, tools lose force, paint quality drifts, and valves start behaving inconsistently.

That is why I never treat compressed air as “just air”. It is stored energy, and stored energy deserves a system view. A leak that seems minor on a gauge can become a measurable cost in a plant, and moisture that looks harmless in a workshop line can damage actuators or contaminate a process. In smarter manufacturing environments, pressure trending, run-hour monitoring, and dew-point checks are increasingly useful because they show problems before they become downtime.

If the actuator area stays constant, lower pressure means less force, while lower flow means slower movement. That is why both numbers matter. On connected sites, I would also want the compressor data feeding a dashboard, because leak growth, load shifts, and moisture spikes are easier to fix when the trend is visible. This is also where the difference between pumps and compressors becomes operational rather than theoretical, which leads straight into the numbers that matter when you size the equipment.

The numbers that actually decide the choice

I would ignore horsepower as a first filter. It matters, but it is not the first thing I look at. The selection sequence is usually pressure, flow, duty cycle, then power supply.

• Pressure tells you whether the machine can reach the force your application needs. In UK specs, I read this in bar first; 6 bar is roughly 87 psi, and many general pneumatic tools sit around 6 to 8 bar, or about 90 to 120 psi. Lighter spray work often sits around 2 to 3.5 bar, or 30 to 50 psi, while heavier two-stage workshop machines can reach around 12 bar, or 175 psi.
• Flow tells you whether the machine can keep up. Read this as l/min or CFM (cubic feet per minute). A receiver tank can help with short bursts, but it does not replace continuous flow capacity.
• Duty cycle tells you how long the machine can run without overheating or falling off spec. If the application runs all shift, the machine should be rated for that reality, not a bench test.
• Air quality matters when the air touches paint, instruments, cylinders, or sensitive products. Oil, water, and particles are not side issues; they are part of the spec, and oil-free hardware can be worth the premium when contamination is unacceptable.
• Power supply matters in UK plants. Small 230V single-phase units suit lighter use, while 400V three-phase is a better fit for regular industrial demand.

Common mistakes I see when people choose the wrong tool

The first mistake is buying by headline power. A 3 hp or 5 hp badge sounds decisive, but it tells you less than the actual delivery at a specific pressure. Two machines with the same rating can behave very differently once hoses, fittings, and real workloads enter the picture.

1. Confusing tank size with output - a larger receiver helps with bursts, but it cannot rescue an undersized compressor that cannot sustain the required flow.
2. Ignoring line losses - pressure drop through filters, long hose runs, quick couplers, and poor pipework reduces what reaches the tool.
3. Using the wrong class of machine - an air pump is fine for inflation or light circulation, but it will disappoint fast if the job needs repeatable pneumatic force.
4. Skipping air treatment - moisture and contamination are easy to ignore until a valve sticks, paint fisheyes, or an actuator becomes unreliable.
5. Overlooking noise and install conditions - a machine that sounds acceptable in a catalogue can be annoying in a compact UK workshop or a production cell with operators nearby.

I also see people overbuy because they want a safety margin without measuring the actual demand. A margin is sensible; blind oversizing is not. The better approach is to measure the load, add realistic headroom, and then check whether the installation can support the machine cleanly and safely.

What I would choose in common workshop and plant scenarios

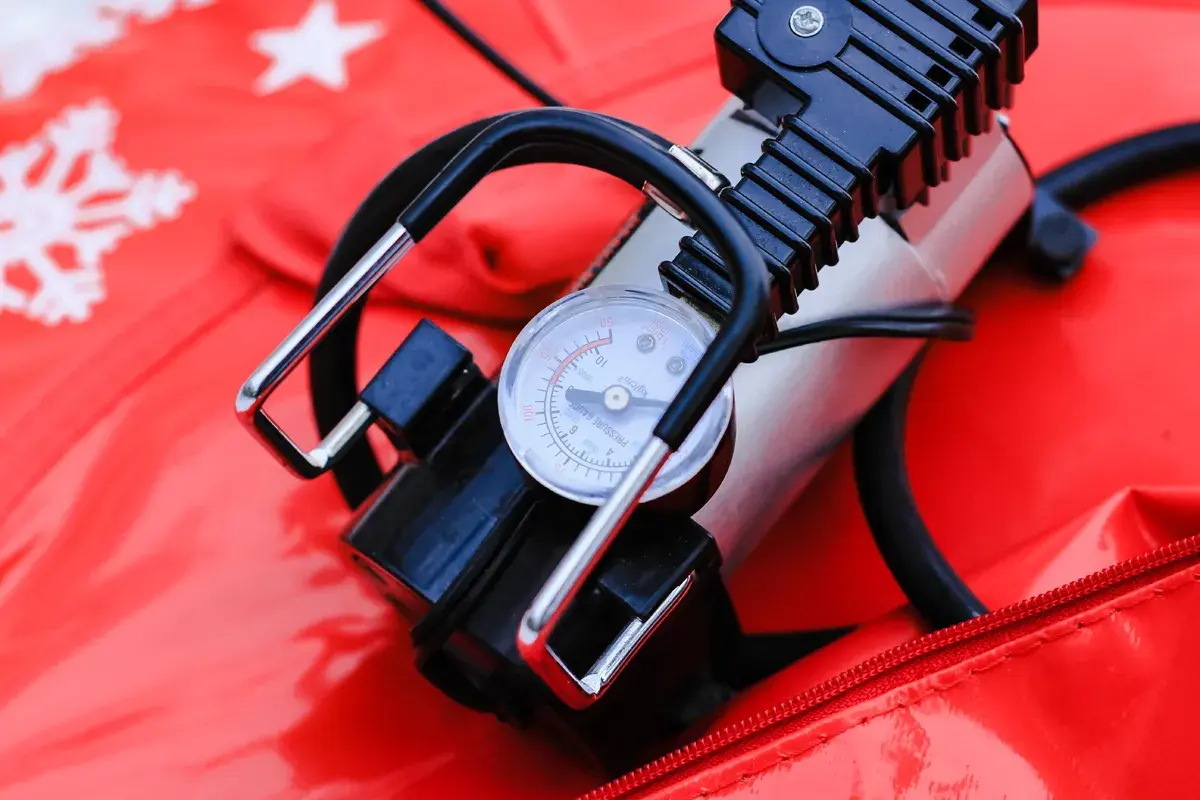

For simple inflation jobs, I would choose a pump or portable inflator every time. That includes bicycles, inflatable products, mattresses, and light circulation tasks where low pressure and convenience matter more than stored energy.

• Tyre top-ups and inflatables - a pump is usually the right tool because the task is about filling, not driving equipment.
• Hand tools and workshop pneumatics - a compressor is the correct choice when the tool needs a stable bar and l/min combination.
• Automation cells and fluid power circuits - use a compressor with a receiver, filtration, and often a dryer, because consistency matters more than peak output.
• Paint, instrumentation, or sensitive process air - compressor plus treatment, and often oil-free hardware if contamination risk is unacceptable.
• UK plant installations - check the electrical supply first, but size the air side first; an undersupplied air system is harder to fix than an underspecified plug.

My rule of thumb is simple: if the job only needs air to enter or leave something, a pump may be enough; if the job needs air to do repeatable work, you are in compressor territory. That is the point where the machine choice stops being semantic and becomes a system-design decision.

When the compressed-air train matters more than the machine nameplate

The most reliable choice is rarely the cheapest device with the biggest headline number. If I need compressed air for production, I would think in terms of the whole train: compressor, receiver, regulator, filters, dryer, pipework, and maintenance access. That is the difference between a setup that works on day one and one that keeps working after the first leak, heat wave, or quality issue.

So the practical answer is straightforward. An air pump is the right fit when the task is inflation, circulation, or another low-pressure job. An air compressor is the right fit when you need usable pressure, stable flow, and a supply that can support pneumatic tools or industrial equipment. If you keep pressure, flow, duty cycle, and air quality in view, the choice becomes much easier and the system usually costs less to live with.

So, if I had to give one rule, it would be this: buy a pump when the job is to move air, and buy a compressor when the job is to create usable pressure. Then size the rest of the system around pressure, flow, losses, and air quality, because that is where the real performance is won or lost.
