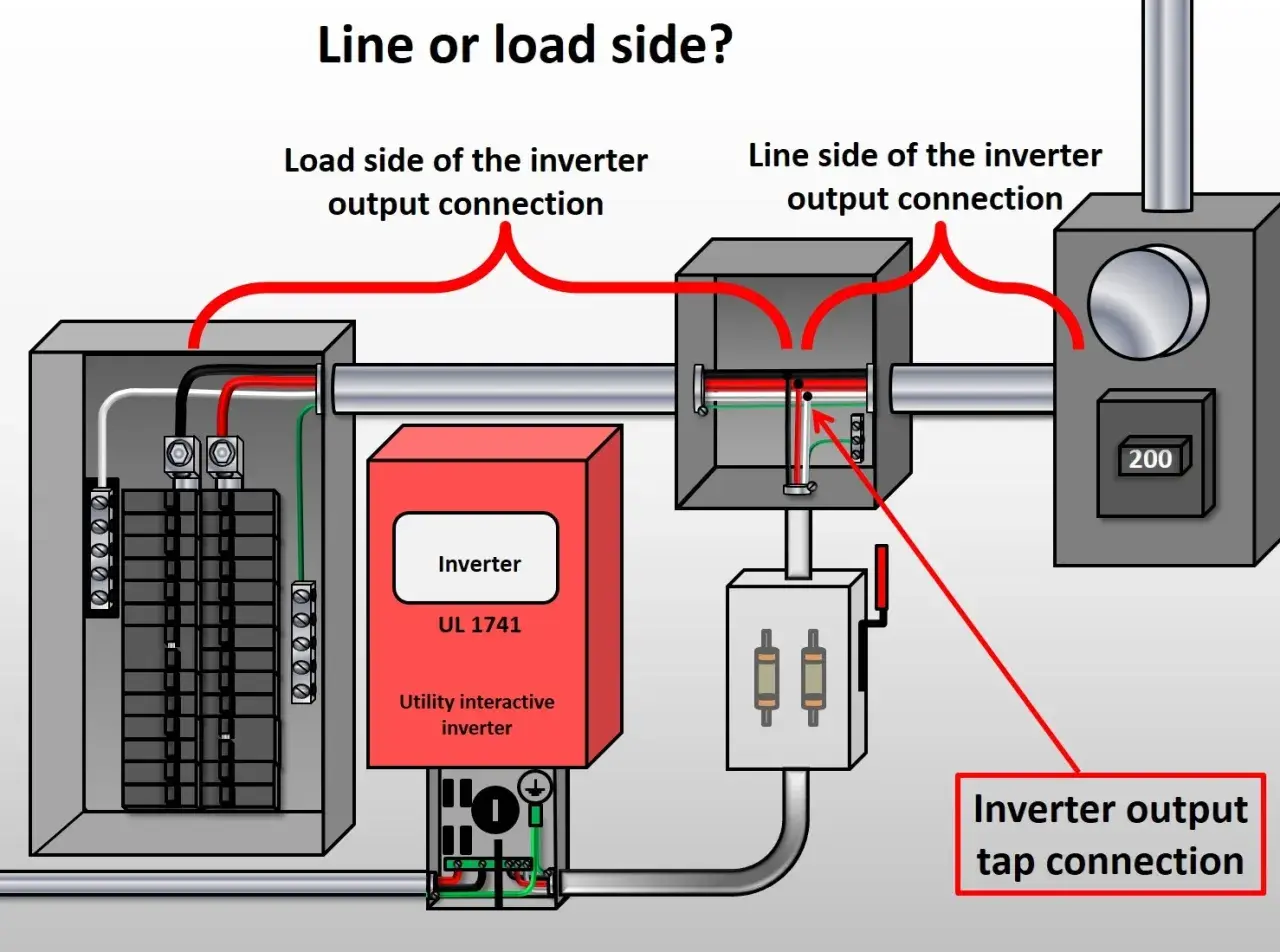

Diagram shows an inverter connected to a breaker panel. The line side of the inverter connects to the utility, while the load side connects to the house circuits.

Table of contents

Line labels look simple, but they only make sense when you know the supply type behind them. The answer to what is line 1 and line 2 in electrical is that they are live conductors, not neutral or earth, and in the UK the meaning changes depending on whether you are looking at domestic wiring, three-phase equipment, or an imported appliance. I am going to break that down clearly, then show you how to identify the conductors safely and avoid the mistakes that cause damaged equipment or dangerous assumptions.

The practical takeaway is that line labels describe how a circuit is fed

  • Line 1 and line 2 are live conductors; they are not the neutral or earth.
  • In a UK home, you usually see one live line, one neutral, and an earth conductor.
  • On industrial and three-phase gear, L1 and L2 are two of the phase conductors, and the voltage between them is line-to-line.
  • Modern UK colours are brown for live, blue for neutral, and green/yellow for earth.
  • The safest identification method is the wiring diagram plus proper testing, not colour alone.

What line 1 and line 2 mean in practice

In plain terms, line conductors are the wires that carry the supply to the load. When a device uses two lines, both are energized conductors, so neither one should be treated as a neutral by default. That is why the label matters more than the wire colour: the label tells you whether the equipment expects a line-to-neutral feed, a line-to-line feed, or a multi-phase supply.

In many parts of the world, especially North America, line 1 and line 2 are the two hot legs of a split-phase system. In British electrical work, the more familiar terms are live, neutral, and earth, with L1, L2, and L3 appearing on three-phase plant, drives, meters, and other industrial equipment. I treat that distinction as fundamental, because the wrong assumption here is how people end up applying the wrong voltage to a device.

How UK wiring changes the picture

In modern UK fixed wiring, brown is live, blue is neutral, and green/yellow is earth. Electrical Safety First gives exactly that colour mapping, while older installations may still use red for live and black for neutral, so I never rely on colour alone in older plant or mixed-cable systems.

System What line 1 and line 2 usually mean Typical voltage What I would check first
Single-phase UK domestic Usually one live line plus neutral, not line 1 and line 2 230 V line-to-neutral Live, neutral, earth, and the appliance nameplate
Three-phase UK industrial L1 and L2 are two phase conductors 400 V line-to-line, 230 V line-to-neutral Phase labels, supply type, and whether a neutral is required
Imported split-phase equipment Two energized lines may feed the load directly Varies by market Manual, input rating, and whether the device is dual-voltage
Older UK installation Conductors may be red/black, with line identification done at terminations Usually unchanged from the system design Labels, sleeving, and proper test results

That line-to-line versus line-to-neutral distinction is the piece many people miss. Schneider Electric’s metering documentation uses L1-L2 for line-to-line readings and L1-N for line-to-neutral readings, which is the cleanest way to read the labels on three-phase gear. If you keep those two voltage relationships separate, the rest of the wiring usually becomes easier to interpret.

Where L1 and L2 show up on real equipment

I see L1 and L2 most often on panels, distribution boards, variable speed drives, industrial heaters, motor starters, and imported appliances. On a drive, for example, L1, L2, and L3 are typically the supply side terminals, while U, V, and W are the motor output terminals. That difference matters, because connecting the supply to the motor side can destroy the equipment very quickly.

On some appliances, especially higher-power cooking or heating equipment, line 1 and line 2 may feed separate internal circuits or heating stages. In other cases, the device is designed for a line-to-line supply and does not need a neutral at all. The label is not decorative; it tells you how the internal electronics or heating elements are meant to see power.

For industrial automation work, the stakes are higher than people expect. A power meter, soft starter, or VFD may tolerate one supply arrangement and fail immediately on another, even if the connectors look similar. That is why I always start with the nameplate and the wiring diagram, not the terminal block.

How to identify them safely

Identification should be a measured process, not a guess. My sequence is simple:

  • Read the equipment nameplate and wiring diagram first.
  • Confirm whether the device expects line-to-neutral or line-to-line input.
  • Check the supply type at the site before opening the terminals.
  • Use a proper voltage tester or multimeter, then prove the tester before and after use.
  • Verify that the circuit is dead before touching conductors.

Good isolation practice means checking all relevant conductors, not just the obvious live one. On UK jobs, that includes line, neutral, and protective conductors, because a neutral can become dangerous in the wrong fault condition. I would also avoid trusting a non-contact pen as the only proof of isolation; it is a rough indicator, not a final decision tool.

If you find a conductor that is blue at one point but is being used as a switched live, it should be identified correctly at the termination. That kind of detail is easy to miss during maintenance, and it is exactly why line conductors should be labeled consistently when circuits are altered.

Common mistakes that create faults or risk

The biggest mistakes are usually simple, and that is what makes them costly. They happen when someone assumes that the second conductor must be neutral, or assumes that wire colour tells the whole story.

Mistake Why it causes trouble Better approach
Assuming line 2 is neutral Can put a live conductor where a return path was expected Check the schematic and measure the circuit
Connecting 230 V equipment to a line-to-line feed without checking Can overload or destroy control electronics Confirm the input rating on the nameplate
Using colour as the only identifier Older wiring and repurposed conductors can mislead you Use colour, labels, and test results together
Mixing supply and load terminals on industrial equipment Can damage drives, motors, and switching components Trace the terminal designation carefully
Skipping phase checks on three-phase motors Can reverse rotation or create control issues Confirm phase order before final energising

The practical consequence is simple: the wrong assumption can turn a straightforward connection into a fault-finding job or a safety incident. In my experience, the most expensive mistakes are not the complicated ones. They are the ones that start with, “It looked like the right wire.”

The check I use before connecting an L1/L2 device

When I am standing in front of a device marked L1 and L2, I run through one short check before anything is energised. First, I confirm the supply type. Then I confirm whether the equipment wants line-to-line or line-to-neutral power. After that, I verify the protective earth, check that the conductors are correctly identified, and only then do I power up and measure the expected voltage.

  • If the equipment is a UK domestic appliance, I expect a single live, a neutral, and an earth.
  • If the equipment is industrial or imported, I expect L1/L2 or L1/L2/L3 markings and a wiring diagram worth following exactly.
  • If the measured voltage does not match the nameplate, I stop immediately.
  • If a motor is involved, I also check phase sequence and rotation direction.

That is the safest way to read the label, and it is usually the fastest way to avoid damage as well. In a UK setting, the rule of thumb is straightforward: use brown/blue/green-yellow as your starting point, but trust the diagram, the voltage measurement, and the terminal marking before you trust the colour. That habit is what keeps line 1 and line 2 from becoming an expensive misunderstanding.

Frequently asked questions

In the UK, Line 1 and Line 2 are live conductors. For domestic wiring, you typically find one live line, neutral, and earth. For industrial three-phase equipment, L1 and L2 are two of the phase conductors.

No, Line 1 and Line 2 are live conductors, not neutral. Assuming one is neutral can lead to dangerous situations or damaged equipment. Always check the wiring diagram and test the circuit.

In modern UK fixed wiring, brown is live, blue is neutral, and green/yellow is earth. However, older installations may use red for live and black for neutral, so never rely on colour alone.

Always start by reading the equipment nameplate and wiring diagram. Confirm the supply type, use a voltage tester, and verify the circuit is dead before touching conductors. Never assume based on wire colour alone.

A common mistake is assuming Line 2 is neutral or relying solely on wire colour. This can lead to connecting equipment incorrectly, causing damage or creating safety hazards. Always verify with schematics and testing.
