Siemens-based PROFINET is one of those industrial networking topics that looks straightforward until you have to design the cabinet, commission the line, or recover cleanly from a fault. I am focusing here on the parts that matter in real projects: how it works, how it differs from ordinary Ethernet, when RT is enough, when IRT or TSN becomes necessary, and which commissioning mistakes waste the most time. If you work with PLCs, drives, distributed I/O or industrial switches, this is the useful layer of detail.
The practical takeaways before you choose a design
- PROFINET is an open industrial Ethernet standard, but Siemens wraps it in a very mature tooling and device ecosystem.
- For most machine networks, RT over standard Ethernet hardware is enough; IRT and TSN only make sense when timing is truly critical.
- Device names, topology planning and diagnostics matter as much as cable quality.
- Ring redundancy can improve availability, but it is not a substitute for good network design and testing.
- PRONETA and SINETPLAN are useful when you want to validate a network before production starts.
What PROFINET changes in a Siemens automation network
In practice, PROFINET gives a machine a shared communication layer that is built for control, not for office traffic. A controller exchanges cyclic I/O with devices such as remote modules, drives and sensors, while also carrying diagnostics, alarms and configuration data on the same backbone. That is the important shift: the network is not just moving packets, it is supporting how the automation system behaves when something changes.
I usually think of it as a way to turn Ethernet into a deterministic industrial transport layer. The controller reads inputs, writes outputs and keeps a process image in sync with the field, while the same infrastructure can also handle open communication, status monitoring and maintenance data. In Siemens environments, that is one reason the protocol feels so natural alongside SIMATIC controllers, distributed I/O and the TIA Portal workflow.
Compared with legacy fieldbus designs, the appeal is not only speed. It is the combination of openness, diagnostics and easier integration with modern industrial IT layers such as OPC UA. That is why PROFINET tends to show up wherever plants want one network that can serve both operation and maintenance without forcing a hard split between them. Once that role is clear, the next question is how the network should actually be built on the shop floor.
How the network is built on the shop floor
The physical design is where a lot of projects either stay simple or become unnecessarily fragile. A basic PROFINET network might be a star around a managed switch, a line through distributed I/O modules, or a ring where availability matters more than absolute simplicity. The right choice depends less on fashion and more on the process: how much downtime can you tolerate, how many devices sit on the segment, and whether motion control is involved.
The real decision is the communication class. Siemens’ own device-class guidance makes the trade-off fairly clear: RT can run on standard Ethernet hardware, while IRT and TSN need specific hardware and firmware support. That matters because people often start with the network they can buy cheapest and then discover the machine needs tighter timing than the chosen hardware can realistically provide.
| Mode | What it adds | Hardware expectation | Best fit |
|---|---|---|---|
| RT (CC-A / CC-B) | Cyclic real-time communication; CC-B also expands diagnostics and topology information | Standard Ethernet hardware | Most machine I/O, conveyors, packaging lines and general automation |
| IRT (CC-C) | Synchronisation and bandwidth reservation for tightly coordinated traffic | Specific hardware support | Motion control, encoders, measuring applications and other synchronised tasks |
| TSN (CC-D) | IEEE TSN mechanisms with the same service goals as IRT, plus broader bandwidth potential | Suitable hardware and firmware | Newer designs that want deterministic Ethernet with a more future-facing architecture |
My rule is simple: do not buy complexity unless the process actually needs it. A slow valve island does not benefit from the same timing model as coordinated servo axes, and that difference is where many over-specified projects waste money. With the structure decided, the next issue is commissioning it cleanly so the physical network and the engineering project stay aligned.

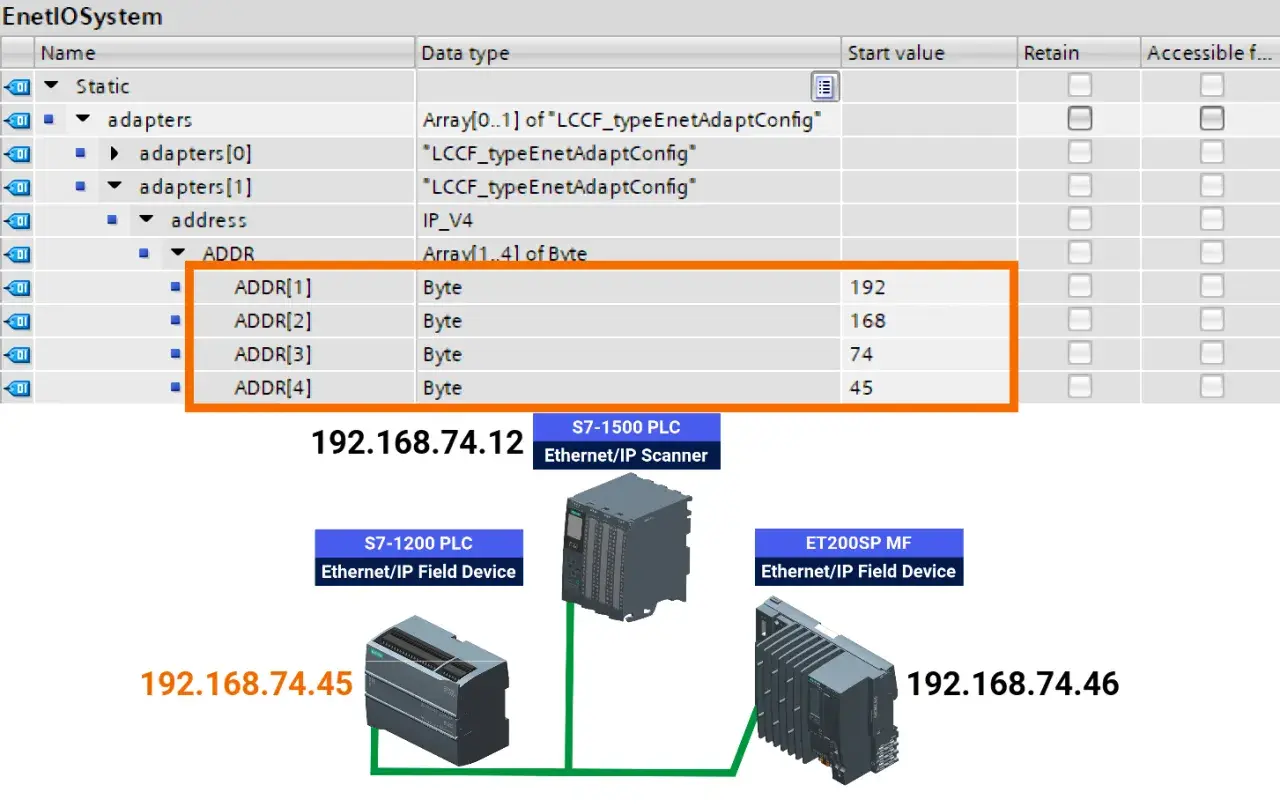

How I would commission it in TIA Portal
Commissioning is more about discipline than cleverness. The first thing I check is whether the hardware list is exact: the right CPU, the right remote I/O family, the right drive variant and the correct device description file. GSDML, the XML-based device description used by PROFINET devices, is not optional paperwork; if it is wrong or out of date, the project may look complete while the plant refuses to come up correctly.
After that, I assign the device name plan before the first serious download. In PROFINET, the name is not cosmetic. A node with the wrong name can sit physically connected and still remain functionally invisible to the controller. That is one of the most common reasons a line appears wired correctly but still fails at startup.
- Build the hardware catalogue with the exact Siemens and third-party device versions you will use.
- Set a consistent naming convention for devices, ports and cabinets before cabling starts.
- Map the network view to the physical topology so the cabinet layout and the engineering project match.
- Download the configuration and verify cyclic I/O, alarms and diagnostics on a cold start.
- Use PRONETA for early commissioning checks and wiring validation, and SINETPLAN when you need to size or simulate network load more carefully.
I also prefer to test device replacement behaviour before production, not after the first fault. If a node supports automatic reassignment or simplified replacement, that is useful only when the maintenance flow is actually documented and understood by the people on shift. That leads directly to the timing decision, because RT, IRT and TSN are not interchangeable labels.
RT, IRT and TSN are different design decisions
This is the part where many teams get too casual. RT is not a lower-quality version of IRT, and TSN is not just a marketing overlay on the same idea. They solve related problems, but they do not do it in the same way. RT is the practical default for most automation networks. IRT is for applications where synchronisation really matters. TSN is the newer deterministic Ethernet model that extends the concept further, but only when the whole hardware chain supports it.
If I were choosing for a typical machine line, I would ask one question first: does timing directly affect product quality, motion coordination or measurement accuracy? If the answer is no, RT is usually the honest answer. If the answer is yes, then the project may need IRT or, in a newer design, TSN. The mistake is to ask for the most advanced class by default and then accept the extra engineering burden without a real operational benefit.
- Choose RT when deterministic I/O is enough and the machine does not depend on synchronised motion.
- Choose IRT when timing jitter would directly affect motion quality or measurement accuracy.
- Choose TSN when you want a modern deterministic Ethernet model and the hardware, firmware and device ecosystem are all aligned.
There is a practical side to this as well: RT networks are easier to source and maintain because they do not require the same specialised hardware. IRT and TSN can be excellent, but only when the project really needs what they offer. Once that choice is made, the remaining risk is usually not the class itself, but the avoidable mistakes that slow down commissioning and maintenance.
The mistakes that cost the most time
The most expensive failures are rarely exotic. They are usually basic mismatches that compound each other. A device name is wrong, a switch is unmanaged where a managed one was expected, the ring was cabled but never tested, or diagnostics were left buried in the controller instead of being surfaced to the HMI and maintenance workflow. Each issue is small on its own; together they turn a simple start-up into a long troubleshooting session.
One thing I watch closely is interface behaviour. On some Siemens controllers, ports and interfaces do not all behave the same way, so I never assume that every connector supports the same mix of functions. That matters when you plan open communication, I-device behaviour, media redundancy or time-sensitive traffic on the same CPU.
- Device names and IP assignments are inconsistent with the engineering project.
- The topology is physically correct but not logically documented.
- Unmanaged switches are used in places that need redundancy, diagnostics or traffic control.
- A ring is built, but failover is never tested under realistic conditions.
- Diagnostics exist in the controller, yet operators cannot actually see them quickly.
- Security is treated as a later task instead of part of the network design.
Security deserves a separate thought because industrial networking is no longer isolated by default. The sensible view is that the protocol, the controller, the switch layer and the plant security concept all need to fit together. That is why the last thing I check before handover is not raw link status, but whether the line will stay understandable and supportable after the first fault.
What I would verify before handover
Before I sign off a Siemens-based PROFINET installation, I want a short list of proofs, not a pile of assumptions. Every device should respond under its expected name, the controller should expose meaningful diagnostics, and the recovery story should be clear enough that another engineer can follow it without guessing. If the network uses redundancy, I simulate a cable or link failure and watch what actually happens, not what the project document claims should happen.
- Every node is visible with the correct PROFINET device name.
- Diagnostics appear where the maintenance team can use them quickly.
- Update times remain stable under normal process load.
- Redundancy has been tested, not just planned.
- Backups, firmware versions and spare parts are documented.
- Remote access and segmentation follow the plant security policy.
For most industrial sites, the best PROFINET design is not the most elaborate one. It is the one that gives deterministic behaviour, clear diagnostics and a maintenance path that works under pressure. In 2026, that is still the real measure of a good Siemens implementation: the network should be easy to trust when everything is normal and even easier to understand when something breaks.
