The practical picture at a glance
- Layer 2 handles local delivery by moving Ethernet frames to the right next hop inside a broadcast domain.
- MAC addresses do the addressing, while switches learn where each address lives from incoming traffic.
- VLANs split one physical network into smaller logical networks that are easier to secure and troubleshoot.
- Trunks carry multiple VLANs between switches and other network devices.
- Most Layer 2 failures are practical: wrong VLANs, loops, stale MAC entries, or corrupted frames.
- Industrial networks rely on it heavily because segmentation and predictable forwarding start at the edge.
What the data link layer does in an Ethernet network
I usually think of Layer 2 as the network’s local delivery service. Its job is not to find a route across the internet; its job is to get a frame to the right next hop on the same Ethernet segment, using the information inside the frame itself.
That means three things matter most: the source MAC, the destination MAC, and the error check at the end of the frame. Switches use the source address to learn where a device is connected, then use the destination address to decide where to forward later traffic. On modern switched links, full duplex is the normal mode, so collisions are no longer the design centre of an Ethernet LAN; they are mainly a historical reminder of shared-media Ethernet.
If you keep that mental model in place, the rest of the layer becomes easier to read. Once the frame is built and forwarded correctly, the next question is how the frame is actually laid out on the wire.
How the Ethernet frame carries the decision
The frame is the part I inspect when I want to understand why traffic moved, stalled, or vanished. A standard Ethernet frame is built around a small set of fields, and each one has a specific job.
| Field | What it does | Why it matters |
|---|---|---|
| Destination MAC | Identifies the intended receiver on the local network | The switch uses this to forward or flood the frame |
| Source MAC | Identifies the sender | The switch learns this address on the ingress port |
| 802.1Q tag | Adds VLAN membership and priority information | Separates logical networks over the same physical switches |
| Type or length | Indicates what the payload contains or how long it is | Helps the next protocol layer interpret the data |
| Payload | Carries the actual upper-layer data | Often contains IP, ARP, LLDP, or industrial traffic |
| FCS | 32-bit frame check sequence | Catches corruption before bad data moves up the stack |
Two numbers are worth remembering. A classic Ethernet frame is 64 bytes minimum and 1518 bytes maximum before optional tagging; an 802.1Q tag adds 4 bytes, so the tagged maximum becomes 1522 bytes. Jumbo frames can be much larger on networks that explicitly support them, but they are a configuration choice, not a universal rule. The preamble and start frame delimiter exist on the wire, but most packet captures do not expose them, which is why they are easy to forget until you need to troubleshoot at the physical edge.
Once the frame layout makes sense, the next layer of the story is forwarding behaviour: who switches what, and why.

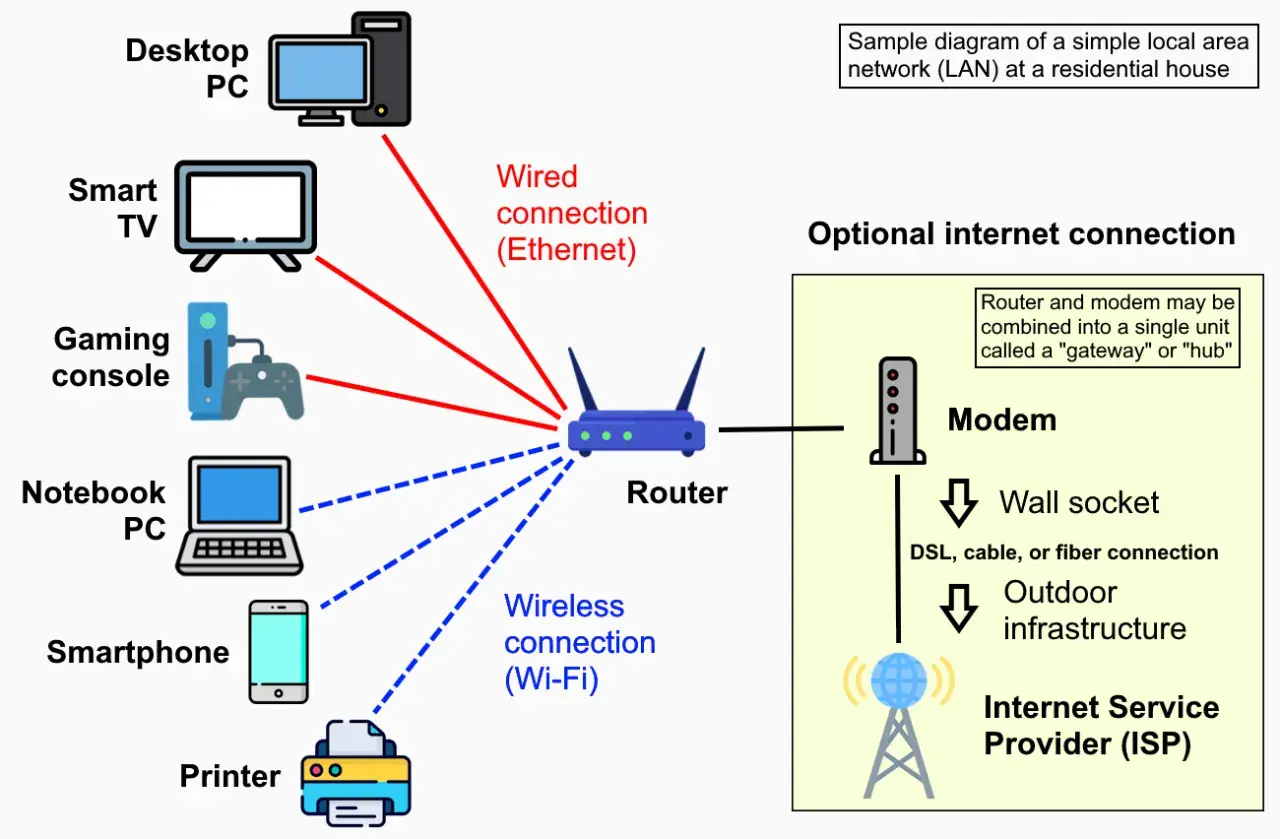

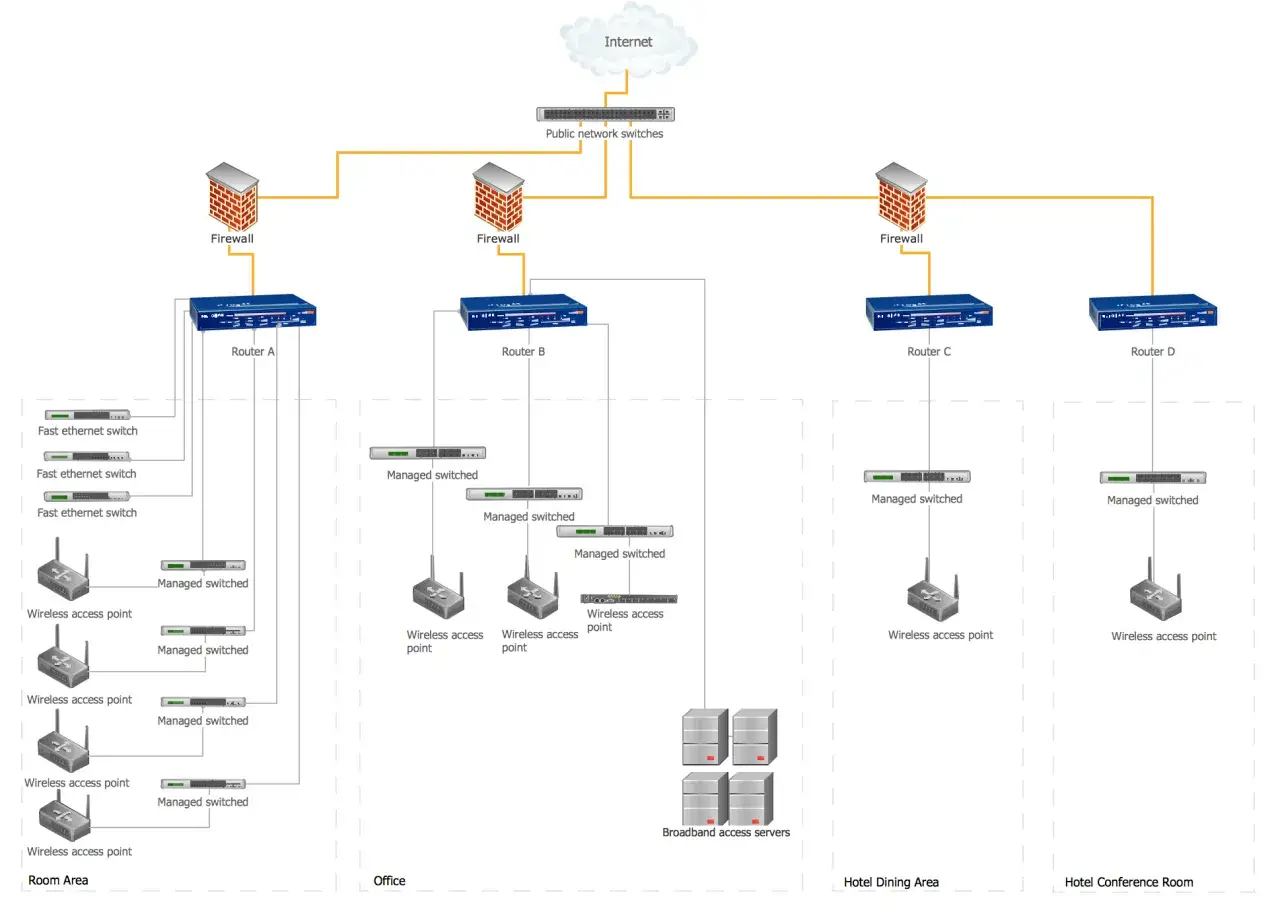

Why switches, VLANs, and trunks matter
A switch is the device that turns Layer 2 from a simple addressing scheme into a usable network architecture. It reads the incoming frame, updates its MAC table, and forwards traffic only where it belongs instead of blasting every packet everywhere. That is why switched Ethernet scales so much better than the old shared-media model.
VLANs add the part many teams rely on without thinking about it: logical separation. A single physical switch can host multiple isolated broadcast domains, which is useful when you want to keep production controllers, maintenance laptops, IP cameras, and guest access away from one another. On a plant floor, that separation is often the cleanest way to reduce accidental chatter without redesigning the whole network.
- Access ports usually carry one VLAN for an endpoint such as a PLC, camera, or HMI.
- Trunk ports carry multiple VLANs between switches, firewalls, or wireless infrastructure.
- Broadcasts and unknown unicasts stay inside the VLAN, which keeps noise local.
- MAC learning makes forwarding faster over time, but stale entries can still mislead you after a move or failure.
In practice, the important question is not whether the cable is plugged in; it is whether the frame is arriving in the right VLAN and leaving on the right port. That distinction becomes even sharper when you compare Layer 2 with Layer 3.
Where Layer 2 stops and Layer 3 takes over
This is the boundary that causes the most confusion. Layer 2 decides how to move traffic inside a broadcast domain. Layer 3 decides how to move traffic between networks. If two devices live on the same VLAN, a switch can usually handle it. If they live on different subnets, a router or Layer 3 switch has to step in.
| Question | Layer 2 answer | Layer 3 answer |
|---|---|---|
| What identifier is used? | MAC address | IP address |
| What is the scope? | One broadcast domain or VLAN | Multiple routed networks |
| Which device makes the decision? | Switch or bridge | Router or Layer 3 switch |
| What usually goes wrong? | Loops, VLAN mismatch, MAC table confusion | Routing, subnet, or policy errors |
| What is the fix? | Correct the frame path and segmentation | Correct the route or gateway path |
I see a lot of teams waste time here because they assume link-up means end-to-end readiness. It does not. A port can be physically healthy and still be logically wrong if the VLAN, trunk configuration, or gateway path is off. Once you separate those layers in your head, troubleshooting gets much less vague.
That logical split also explains the most common Layer 2 failures, which are usually simpler than they first appear.
Common Layer 2 mistakes that still cause outages
The failures I see most often are not exotic. They are configuration drift, loop problems, and a little bit of cabling damage hiding behind a green link light.
- Wrong VLAN assignment means the device is online but marooned in the wrong broadcast domain.
- Trunk misconfiguration can silently block the VLAN you expected to carry.
- Loops can create a broadcast storm fast enough to make a small LAN feel broken in seconds.
- CRC or FCS errors often point to cabling, connectors, optics, or electromagnetic noise rather than software.
- Excessive broadcast traffic usually means the segment is too flat, too busy, or both.
The mistake I would challenge most beginners on is treating the link light as proof that the path is correct. It proves only that Layer 1 is up. You still need the frame to be built correctly, placed in the right VLAN, and forwarded by switches that agree on the topology. Once that is clear, industrial networks start to look less mysterious and more manageable.
Why Layer 2 still matters in industrial automation and IoT
In industrial automation, Layer 2 is not academic. It is the layer that lets me separate machine cells, keep cameras from overwhelming control traffic, and give maintenance access without flattening the whole plant into one noisy segment. The same logic applies to IoT deployments in warehouses, utilities, and smart buildings: thousands of small endpoints are easier to live with when the network is segmented before the traffic grows messy.That is especially relevant in 2026, when edge networks are denser and more mixed than they used to be. A single line may include PLCs, HMIs, IP cameras, wireless access points, sensors, and PoE devices all on the same switching fabric. In that kind of environment, I would rather have a well-designed Layer 2 plan than a larger routing table. The reason is simple: segmentation at the edge reduces blast radius.
There is also a practical timing angle. Ethernet remains the base transport for many time-sensitive industrial designs, and even when higher-level protocols or TSN features are involved, the frames still depend on clean Layer 2 forwarding. If the local switching domain is unstable, the rest of the stack inherits the problem.
For most factory networks, the goal is not perfection. It is predictable behaviour: the right devices in the right VLANs, the right uplinks carrying the right tags, and the right controls around loops and storms. That is usually enough to keep the network serviceable without making it fragile.
When I am brought in to diagnose a live issue, I start with a short set of checks before I touch routing or applications.
The five checks I make before blaming the application
- Confirm the port is up, negotiated at the expected speed, and not showing rising error counters.
- Verify the switch has learned the device MAC address on the port you expect.
- Check whether the access VLAN or trunk VLAN list matches the intended design.
- Look for loops, rapidly moving MAC entries, or unexplained broadcast spikes.
- Test one known-good device in the same VLAN before changing anything higher in the stack.
Those five checks usually tell me whether I am dealing with a real application fault or with a local Ethernet problem that only looks higher-level. That is why I treat Ethernet layer 2 as the first control surface in a LAN: if the frame, the MAC table, and the VLAN map are right, the rest of the network becomes far easier to trust.
